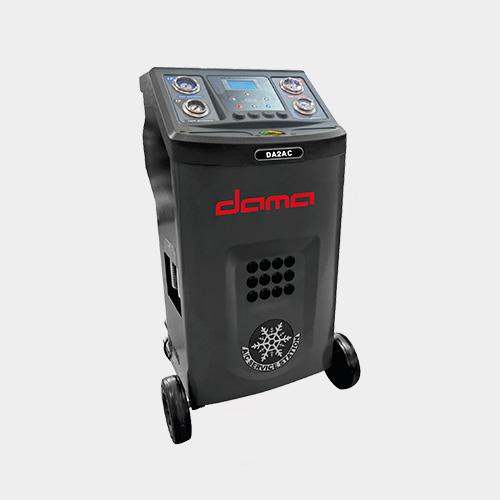

Automatic Air-Con Charger – DA2AC

Specifications:

Voltage: 220V/50Hz/1Ph
Suction speeed: 90L/min
Compressor power: 3/8 hp
Compatible con refrigerante: R134A – R1234YF (NO MEZCLAR)
Gas scale accuracy: ±5 g
Max. weight admitted by the gas scale: 60 kg
Dimensions: 600 x 570 x 1110 mm

Parameters

Gas tank capacity: 10 kg
Recovery speed: 180~350 g/min.
Recharge speed: 800~1500 g/min
Max. pressure for high pressure gauge (HP): 30 bar
Max. pressure for low pressure gauge: (LP): 20 bar
Max. pressure for total pressure gauge (TP): 25 bar
Max. working pressure: 17.5 bar

Connectors according to coolant:

D2C134A
CONNECTOR KIT134A
D2C1234YF
CONNECTOR KITS 1234YF
