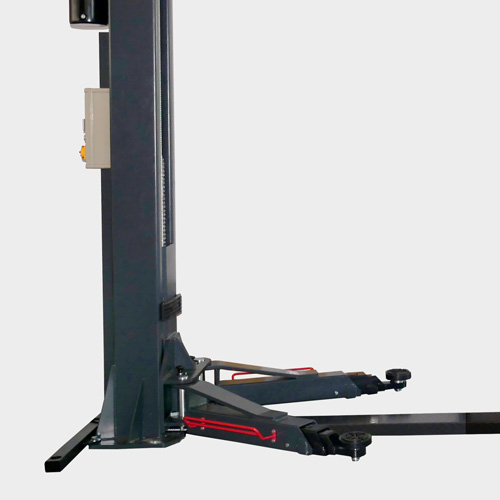

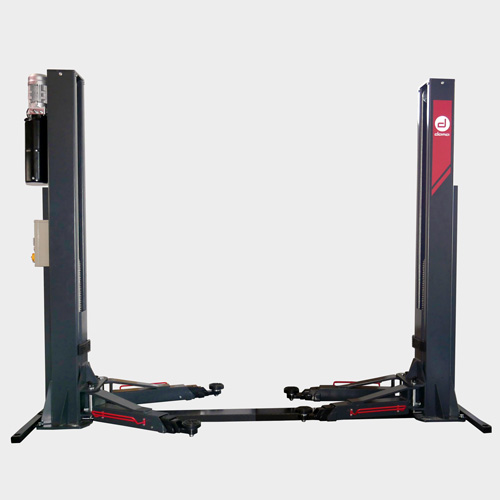

2 Post Lift Semi Base Frame 5T | DM5.0T/1

Description:

• Ground installation
• 2 hydraulic cylinders + chain
• Synchronisation steel rope
• Lowering solenoid valve
• Electromagnetic safety locking system
• Limit switch maximum height
• 3-stage symmetrical arms
• Extension pads

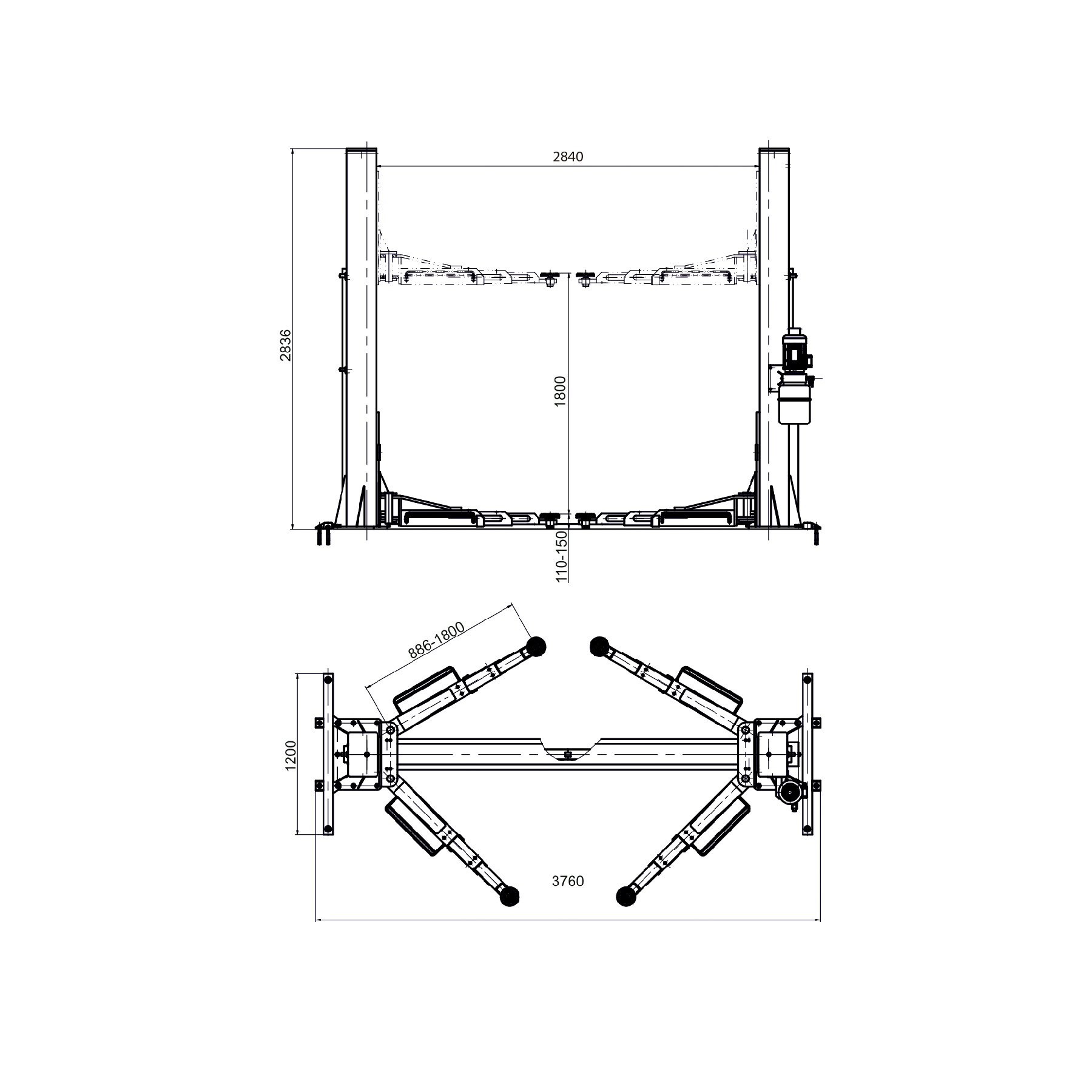

Technical data:

• Capacity: 5000kg
• Lifting range: 110 – 1800 mm
• Height: 2836 mm
• Width: 3920 mm
• Lifting time: 60s
• Lowering time: 20-60 s
• Power: 400V/3ph/50Hz/3.0KW
• Weight: 1175 kg
