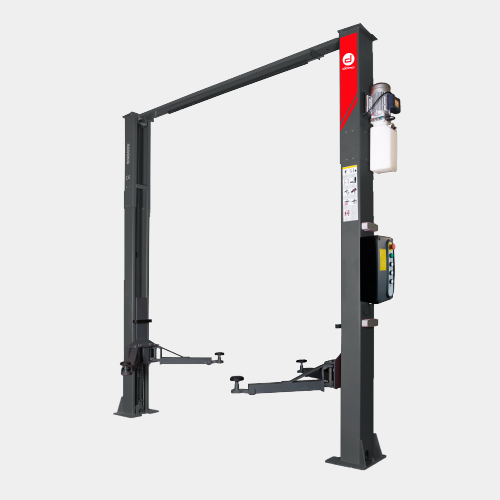

2 Post Lift Baseless 4T | DM4.0T/SB2

Description:

• Baseless structure
• 2 hydraulic cylinders + chain
• Synchronisation steel rope
• Lowering solenoid valve
• Electromagnetic safety locking system
• Limit switch maximum height

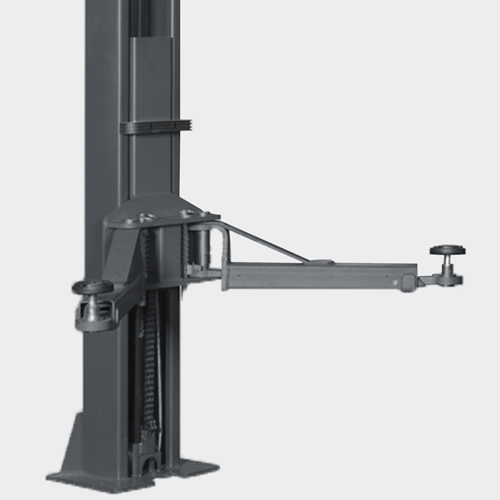

• 3-stage symmetrical arms
• Extension pads

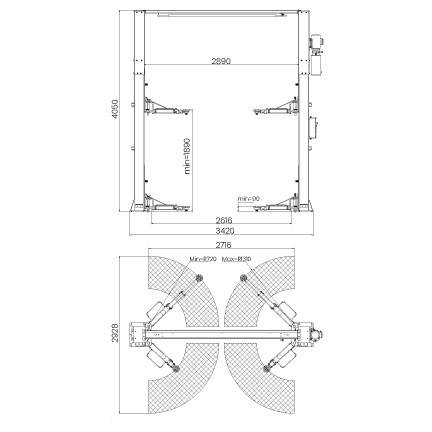

Technical data:

• Capacity: 4000kg
• Lifting range: 91 - 1890 mm
• Lifting time: 60s
• Lowering time: 18 - 40 s
• Height: 4050 mm
• Width: 3420 mm
• Power supply: 400V/3ph/50Hz/4.33A/2,2KW - 230V/1ph/50Hz/11.8A/2,2KW

Accessories included:

• 4 x Rubber pads Ø115 mm
• 4 x Extension pads 70 mm
