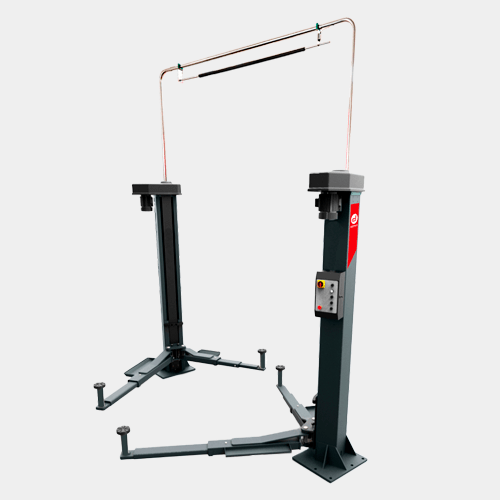

2 Post Lift Electro-Mechanical 4T | DM4.0EM

Technical data:

• Capacity: 4000kg
• Power supply: 2 x 3.6 KW / 400V / 3ph / 50Hz
• Lifting range: 85 – 1850 mm
• Height: 4200 mm
• Width: 3570 mm
• Total weight: 835 kg

Description:

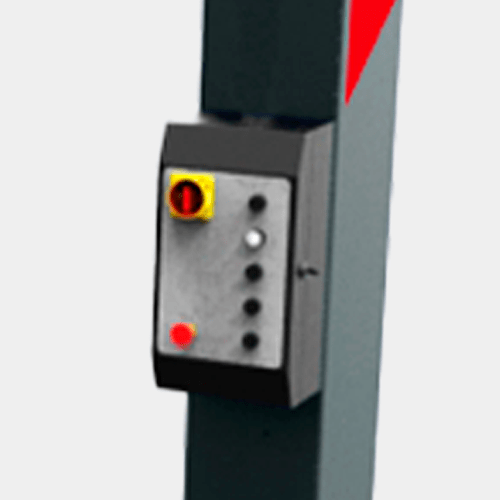

• Control operation 24 V
• Limit switch maximum height

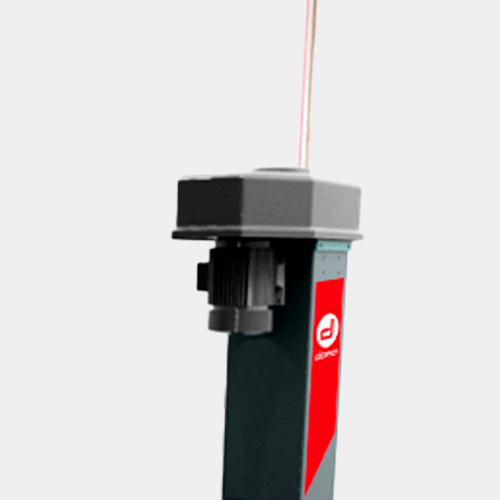

• Mechanical transmission with 2 independent engines
• Quick cable connection to control box
• Double safety locking nut
• Limit switch for cable breakage and maximum height
