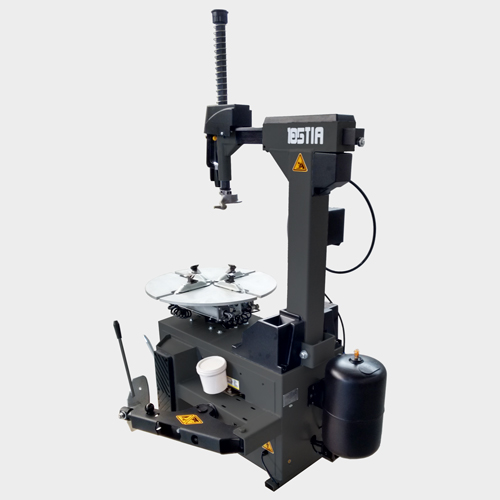

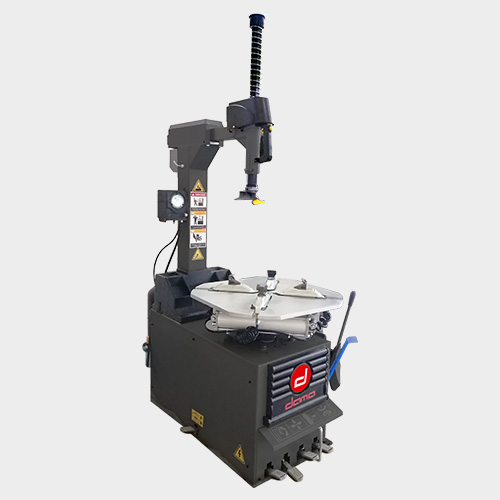

Automatic Wheel Changer | DM185TID2

Standard provision:

• Air/oil filter regulator
• Tyre inflator with pressure gauge
• Tyre lever
• Soap bucket

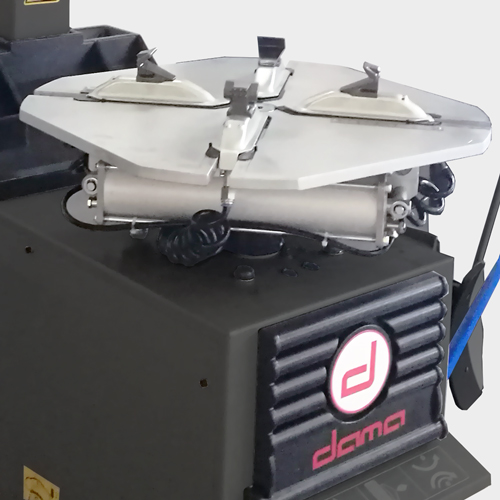

• 4 clamps auto-centering clamping and demount head
• Plastic protectors for demount head/clamps
• Automatic tilting column
• Air tyre bead seater blaster
• Desmontadora 400V: 2 velocidades
• Rounded-shape anti-trapping pedals

Technical data:

• Wheel width: 3″-13″
• Wheels (from inside): 14″-25″
• Wheels (from the outside): 12″-22″
• Max. wheel diameter: 1120 mm
• Power: 400V/3ph/1.1 KW / 0.75 KW/50Hz – 230V/1ph/1.1KW/50Hz
• Pneumatic working pressure: 8 -10 bar
• Bead breaking force: 3200 kg
• Net weight: 297 kg
